ULTRASEAL® AB

APC Waterproofing Membrane with Advanced Bond Coating

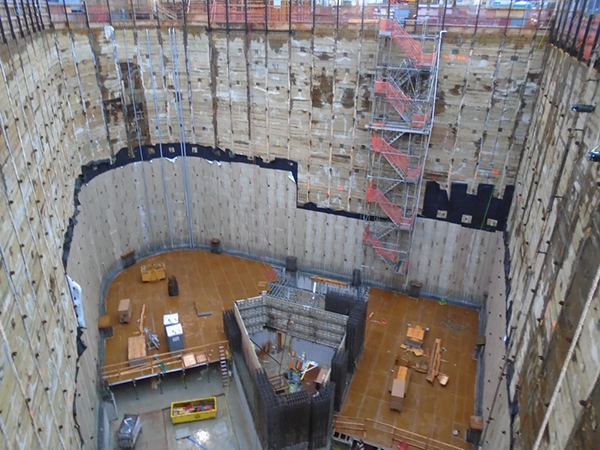

ultraseal-ab-installation-seattle

ULTRASEAL® AB waterproofing membrane is the next generation of the popular ULTRASEAL® waterpoofing system. Incorporating a new pressure-sensitive layer, the enhanced ULTRASEAL AB waterproofing membrane bonds tenaciously to concrete to prevent water migration. ULTRASEAL AB waterproofing membrane bonds once concrete is poured against its membrane surface. Unlike other adhesive-bonding membranes, its active APC waterproofing layer self-seals small punctures and tears commonly caused during construction activities. The adhesive layer protects the polymers from moisture during construction allowing it to be installed in all weather conditions and has proven effective in both hydrostatic and non-hydrostatic conditions.

ULTRASEAL AB waterproofing membrane is lighter, more impervious, and more resistant to contaminated water while having improved performance in saltwater conditions. The product's inherent flexibility allows for easier installation for improved efficiency and effectiveness.



HydroshieldBanner-1





    Overview

    Advanced Bond

    ULTRASEAL® AB combines two proven technologies into one superior membrane.

    • Polyethylene liner and an advanced Active Polymer Core (APC) layer are integrally bonded to an aggressive pressure sensitive adhesive that locks the membrane to concrete
    • Active hydrophilic polymer APC layer swells and seals against water ingress
    • Aggressive adhesive bond to concrete prevents water ingress

    Superior Adhesion

    • Adhesive bond provides lateral water migration resistance continuously across the exterior surface of the concrete
    • Aggressiveness of the bond ensures the membrane remains bonded to concrete
    • APC technology seals small punctures and tears in the membrane resulting from construction activities

    Efficient Installation

    • Designed to be installed on a properly prepared sub-grade without the need to pour a working slab
    • Can be installed as soon as the forms are removed - no waiting for the concrete to cure before installing the waterproofing
    • Lighter and easier to handle rolls
    • Install in virtually any weather condition

    Contaminant Protection

    • Zero VOCs
    • Greater resistance to contaminated water conditions
    • Improved performance in high saline environments

    Applications

    ULTRASEAL® AB is designed primarily for backfilled conditions, under slab and property line foundation shoring wall construction, including:

    • Soldier pile and lagging
    • Metal sheet piling
    • Auger cast caisson
    • Shotcrete
    • Stabilized earth retention walls
    Accessory Products

    Bentoseal

    BENTOSEAL® mastic compound waterproofing agent

    A trowel-grade bentonite-based mastic that is used to detail at membrane terminations, around penetrations, over grouted concrete form-tie holes, and provide fillets to inside wall corners. Unlike most mastics, this premium mastic is capable of swelling and self-sealing upon hydration and is VOC compliant. Bentoseal can be covered with a waterproofing membrane immediately after application.
    TECHNICAL DATA SHEET



    200x147_Cetseal
    CETSEAL
    A multi-purpose, single component polyether moisture cure sealant/adhesive. CETSEAL is a low VOC, 100% solids, non-shrinking product with excellent UV resistance. Available in 10.1 oz cartridges with 12 cartridges per case at 12 lbs (5.4 kg), or 20 oz foil packs with 12 per case at 20 lbs (9 kg).
    TECHNICAL DATA SHEET

    200x147_Envirosheet

    ENVIROSHEET
    ENVIROSHEET membrane is supplied in 200 square foot rolls, 36” (914 mm) wide by 66.7’ (20.3 m) long. The rubberized asphalt is covered with release paper which is removed prior to installation. The membrane is cold-applied and self-adheres to a properly prepared and primed substrate. A cold-weather version;
    TECHNICAL DATA SHEET

    200x147_HydrobarTubes

    HYDROBAR® TUBES
    Consisting of VOLCLAY granular bentonite encapsulated in a water-soluble film tube, HYDROBAR TUBES are a convenient means of providing extra waterproofing protection at the critical wall to footing intersection joint. Each tube is 50 mm (2") dia. x 600 mm (2 ft) long. Available in 16 tubes per box for 9.75 m (32 linear feet).
    TECHNICAL DATA SHEET


    Swelltite_Seamtape-11-1

    SEAMTAPE
    A single-sided tape consisting of an aggressive rubber-based adhesive with a durable polyethylene backing. Seamtape is primarily used to seal the overlap seams for both backfilled foundation walls and horizontal deck applications. Seamtape protects the overlap seams against debris intrusion during backfill and damage from rain prior to backfilling. Available in 3” (75 mm) x 50-Ft (15.2 m) rolls; 8 rolls per case
    TECHNICAL DATA SHEET



    200x147_TB-boot

    TB-BOOT
    A single piece, pre-formed thermoplastic cover that provides a simple and quick waterproofing installation detail. The thick thermoplastic construction provides the strength and durability to withstand the concrete placement. Available in three sizes: TB-6SN is 6” (150 mm) deep, TB-8 is 8” (200 mm) deep, and TB-10 is 10” (250 mm) deep.
    TECHNICAL DATA SHEET



    NoImage-Placeholder-2

    WATERSTOPPAGE
    WATERSTOPPAGE is chemically treated, granular sodium bentonite used as a detailing accessory product for CETCO Waterproofing Systems. When wetted, WATERSTOPPAGE forms into a dense, low permeable material that combines with the sodium bentonite in the waterproofing products to form a seamless waterproofing membrane.
    TECHNICAL DATA SHEET
