STRATASEAL HR Hot Rubberized Asphalt Waterproofing

Fast. Easy. Versatile.

It’s a proven success.

Combining decades of experience with advanced technology, STRATASEAL HR is the solution for exceptional and easy-to-install waterproofing.

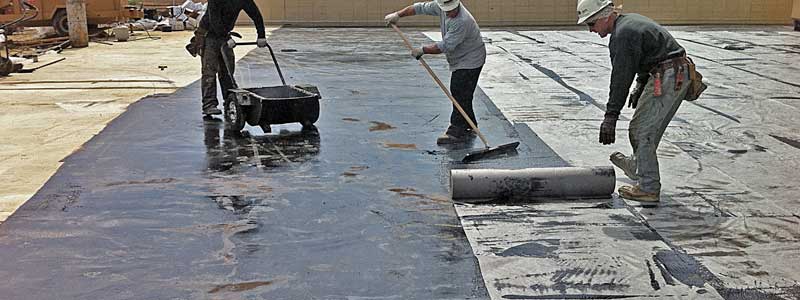

strataseal hr hot rubberized asphalt waterproofing applied under slab

Hassle-free installation plus outstanding waterproofing performance

For new and restoration construction, STRATASEAL HR combines reinforcing fabric with layers of hot-applied rubberized asphalt to form a tough, continuous, seamless membrane to provide a reliable water barrier for horizontal and vertical concrete surfaces such as:

  • Split-slab plaza decks
  • Pavered plaza decks
  • Parking garages
  • Bridge decks
  • Foundation walls
  • Tunnels
  • Planters
  • Earth covered structures
  • Roof decks using a protected membrane system
  • Green roofs

STRATASEAL HR contours readily to the substrate. It completely fills around penetrations and adheres tenaciously to virtually any appropriate surface.



Easy installation saves you time—and money

STRATASEAL HR can be installed in temperatures as low as 0°F. Eliminating such weather delays and site-specific installation variabilities that can cost time, its fast set-up speeds installation so your waterproofing project proceeds on schedule—without costly delays.



How it Does it

STRATASEAL HR is a single component, 100% solid, hot-applied rubberized asphalt membrane. It’s formed by applying reinforcing fabric over a 2.3 mm (90-mil)-thick base layer of rubberized asphalt and then applying a second 3.2 mm (125 mil) thick layer of rubberized asphalt over the reinforcing fabric for a total system thickness of 5.5 mm (215 mils). What’s more, in the unlikely event of damage to the membrane, STRATASEAL HR’s exceptional adhesion limits lateral water migration to the damaged area.

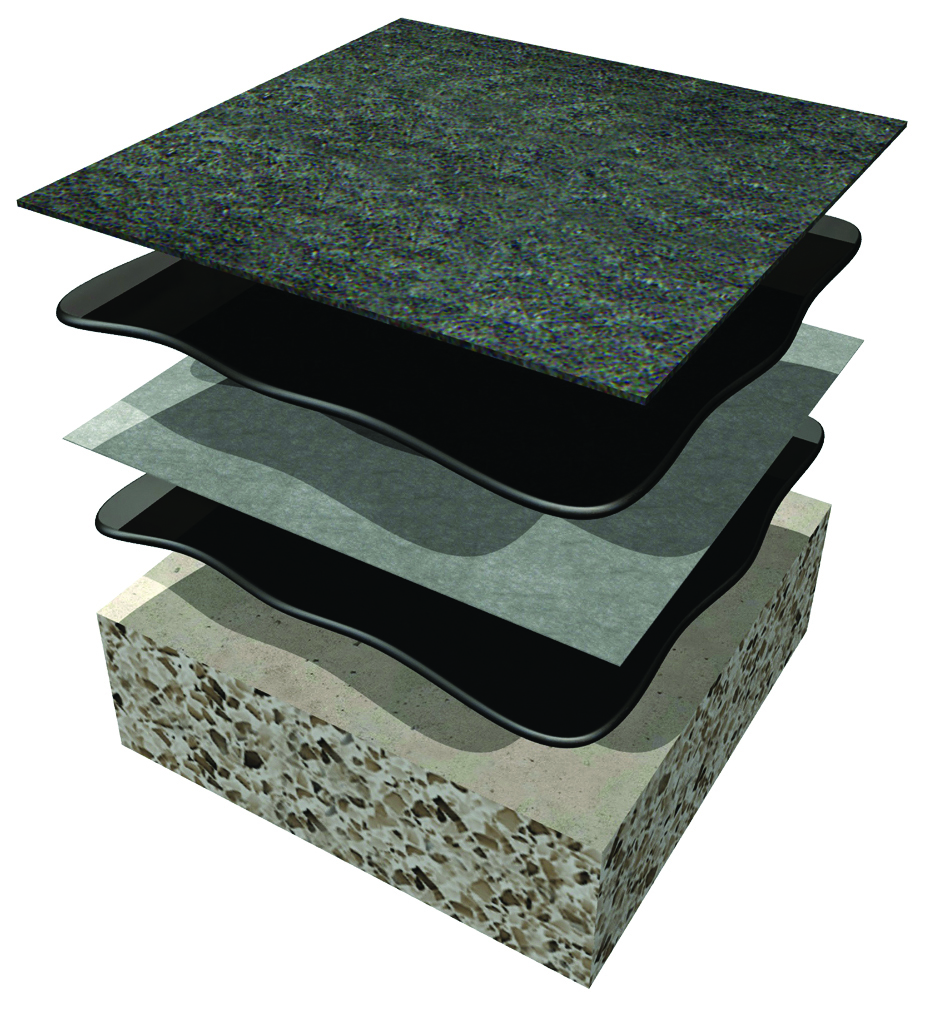

strataseal hr hot rubberized asphalt waterproofing exploded view
